A588 steel sheet is a high-strength, low-alloy structural steel renowned for its atmospheric corrosion resistance. It has a good combination of strength and weldability. The chemical composition includes elements like manganese, copper, and chromium which contribute to its durability. With a minimum yield strength of around 50 ksi (345 MPa), it is suitable for various outdoor applications such as bridges and building facades, reducing the need for extensive maintenance and painting while providing reliable structural support.

A588 Gr.A Corten Steel Plate Specification :

Grade : ASTM A588 Gr A Carbon Steel Plates
Standard : ASTM A588 / ASME SA588
Width : from 750mm to 1500mm
Length : upto 12,000mm
Thickness : from 0.8 mm to 50mm
Type : Carbon Steel
Process : Hot-Rolled (HR)

Mechanical Properties

• Strength: A588 steel plate has high strength. It has a good tensile strength and yield strength. For example, its minimum tensile strength can reach a certain high level, which enables it to bear heavy loads and is suitable for structural applications where strength is crucial.
• Ductility: It also shows excellent ductility. The elongation percentage is considerable, meaning it can deform to a certain extent without breaking. This property is very important when the material is under stress or strain, such as in seismic - resistant structures.

Corrosion Resistance

One of the remarkable features of A588 carbon steel plate is its good corrosion resistance. It can withstand corrosion from the atmosphere, seawater and other corrosive environments. Compared with ordinary carbon steel, it can last longer in outdoor or harsh conditions without excessive maintenance.

Processing Characteristics

Weldability: It has good weldability. Welders can easily join different pieces of A588 steel plates together to form complex structures. The welded joints have high strength and good quality, which is beneficial to the construction and manufacturing process.

Scope of Application

ASTM A588 steel is known for its weather resistance. When exposed to external conditions, its corrosion resistance becomes stronger even if it is not painted. ASTM A588 steel has four times the corrosion resistance of carbon steel. The application of ASTM A588 steel is very wide. In addition to its typical application in welded bridges and buildings, this specification is also widely used in railway passenger cars; including transmission towers and telephone towers, trucks, bridges and gusset plates, and housing shells. ASTM A588 steel also maintains a good strength-to-weight ratio, meeting the high strength requirements of carbon steel with less weight.

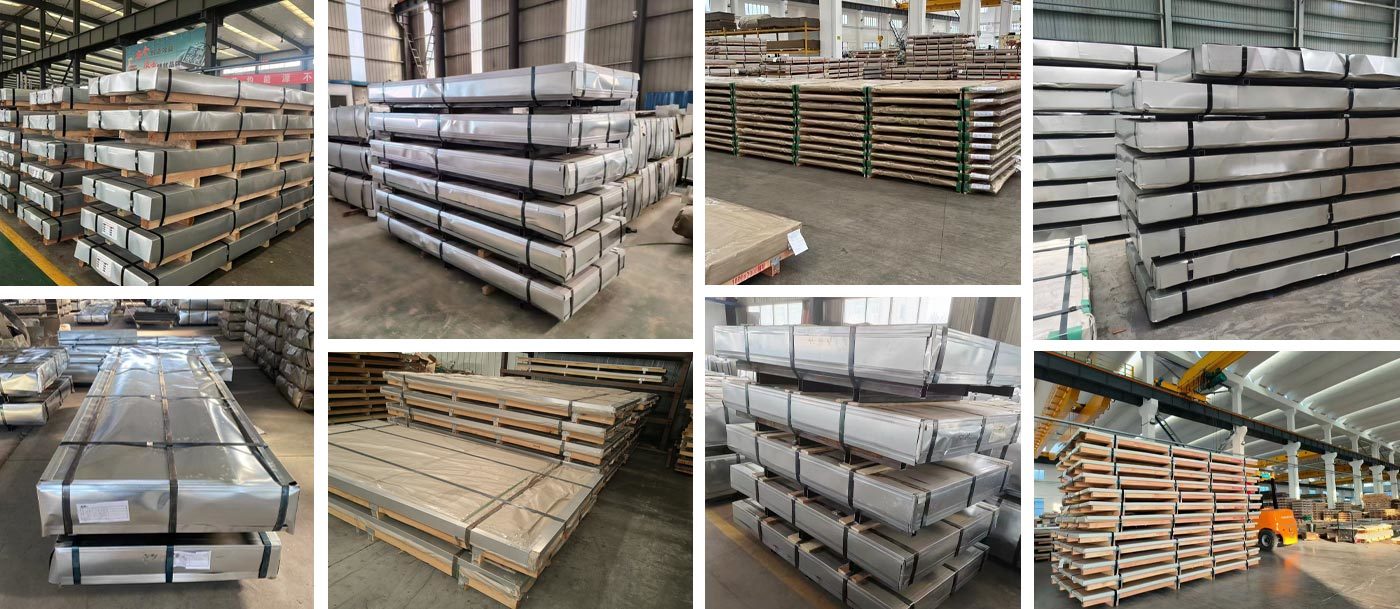

PACKING AND DELIVERY

    We have established ourselves as reliable suppliers of various steel and metal materials and processing products. Our core business revolves around the production and distribution of steel plates, coils, pipelines, bars and configuration files. These industries have a wide range of industries.

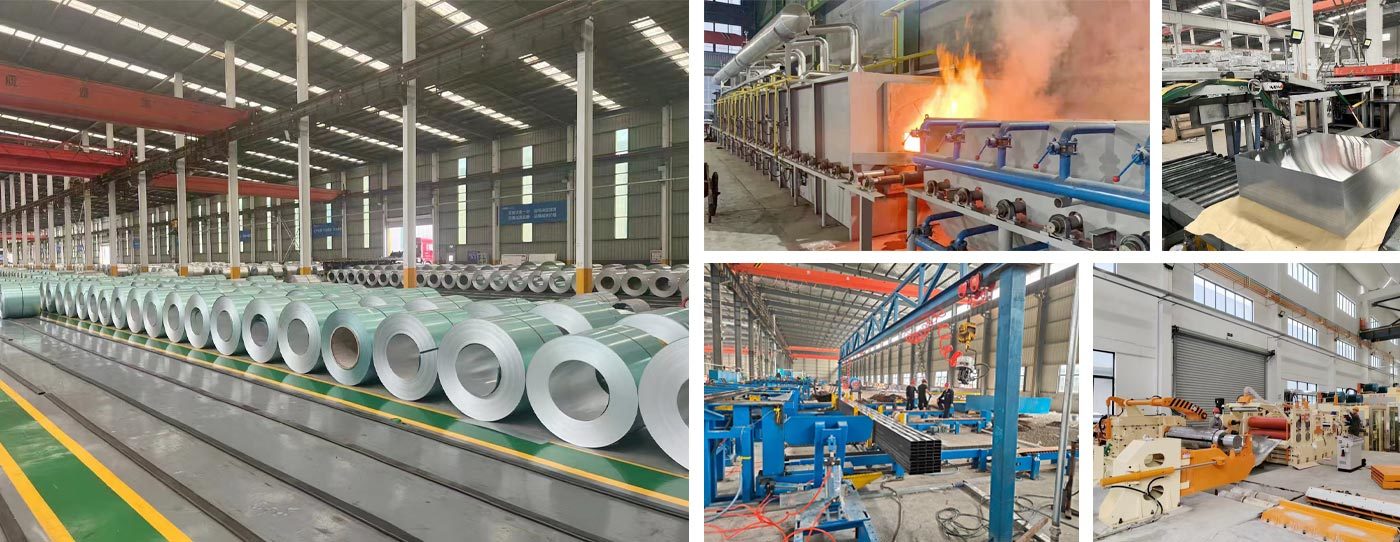

FACTORY WORK SHOP

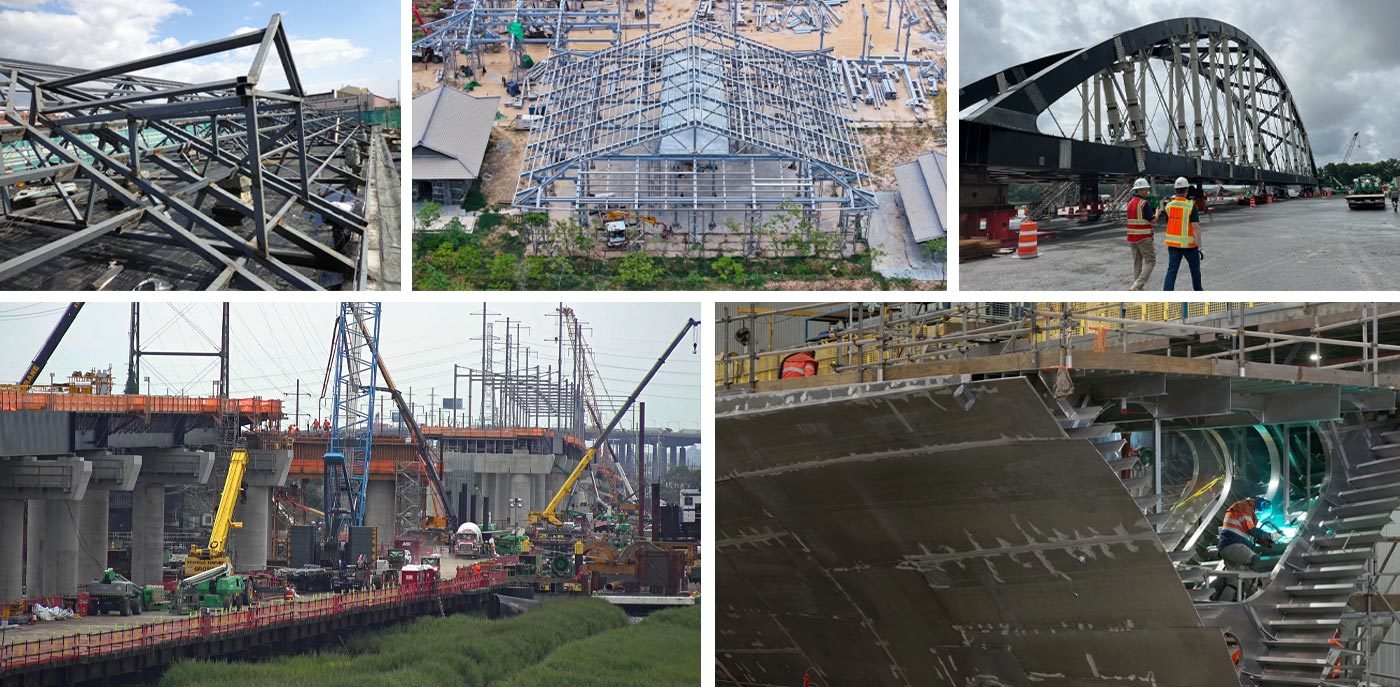

APPLICATION FIELD
